Bracket, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

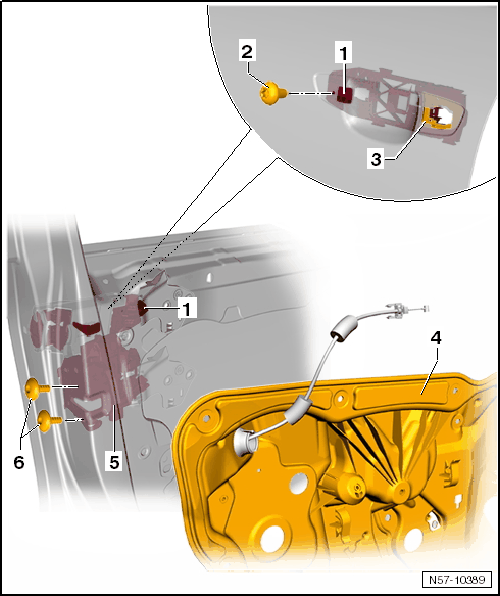

Fig 1: Identifying Mounting Bracket -1- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Install in reverse order of removal. Note the following:

-- Tighten the bolt -2-, tightening specification: 1.5 Nm.

-- Tightening specification for bolts -6- : 20 Nm.

Then a function test must be performed because the lock will not open if the release cable is not adjusted and secured correctly.
