Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Mounting Bracket -1- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim. Refer to FRONT DOOR TRIM PANELS .

-- Remove the subframe. Refer to SUBFRAME, REMOVING AND INSTALLING .

-- Remove the lock cylinder or the cap. Refer to LOCK CYLINDER, REMOVING AND INSTALLING and REMOVING .

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

-- Remove the screws -2-.

-- Remove the bolts -6-.

-- Remove the bracket -1- together with the lock -5- from the door.

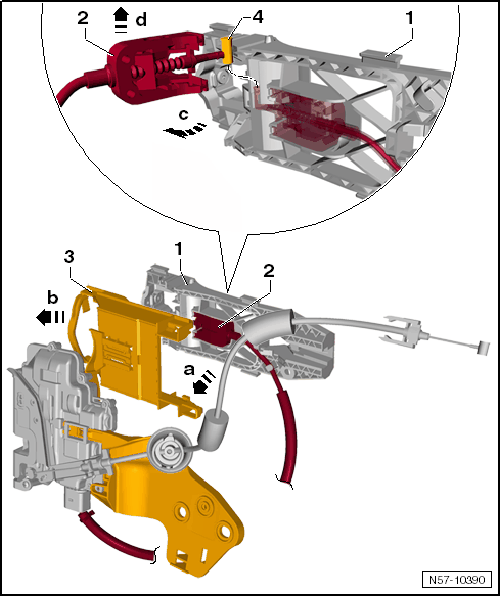

Fig 2: Identifying Mounting Bracket -1-, Retainer -2- And Retaining Bracket -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the latching mechanisms in the retaining bracket -3- in direction of -arrow a-.

-- Remove the mounting bracket -1- from the retaining bracket -3- in direction of -arrow b-.

Detach the Release Cable

-- Release the retainer -2- and swivel it out of the mount in the mounting bracket in direction of -arrow c-.

-- Lift the pin for the control cable out of the mount in direction of -arrow d-.
