Cap Without Lock Cylinder, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door handle -2- from the door in the direction of -arrow a-.

Fig 1: Identifying Installation Of Door Handle Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the cap -1- into the bracket -arrow b-.

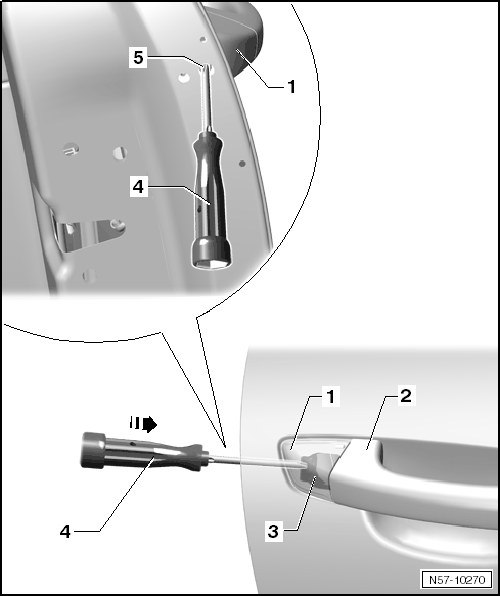

Fig 2: Identifying Screwdriver To Re-engage Hook

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert a screwdriver -4- at the locking hook -3- of the mounting bracket.

-- Push the cap -1- onto the door.

-- Push the screwdriver in just far enough in direction of -arrow- to release the hook.

-- Secure the plug -5-.
