Lock Cylinder Cap, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Place the lock cylinder cap -2- gently at an angle from above in direction of -arrow a- on the lock cylinder.

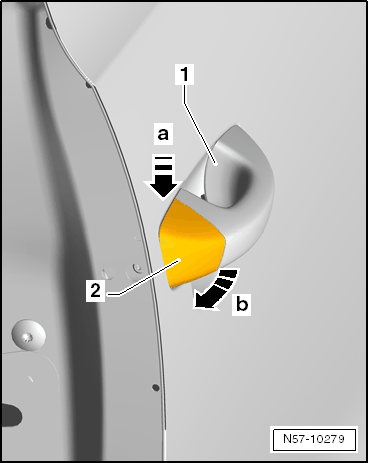

Fig 1: Identifying Installation Of Lock Cylinder Cover Cap
GWWN57-10279Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the lock cylinder cap -2- on to door in direction of -arrow b- until cover cap engages with lock cylinder.
