Lock Cylinder Cap, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Do not turn the screwdriver to pry off the lock cylinder cap.

-- Remove the door handle from the door.

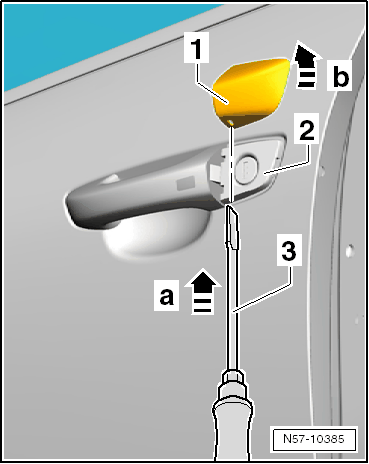

Fig 1: Identifying Lock Cylinder Cover Cap -1-, Lock Cylinder Cap -2- And Small Screwdriver -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Gently push a small screwdriver -3- in direction of -arrow a- into the opening on the bottom of the lock cylinder cap.

-- Remove the lock cylinder cap -1- with the screwdriver gently from the door and push up in direction of -arrow b-.
