Lock Cylinder, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

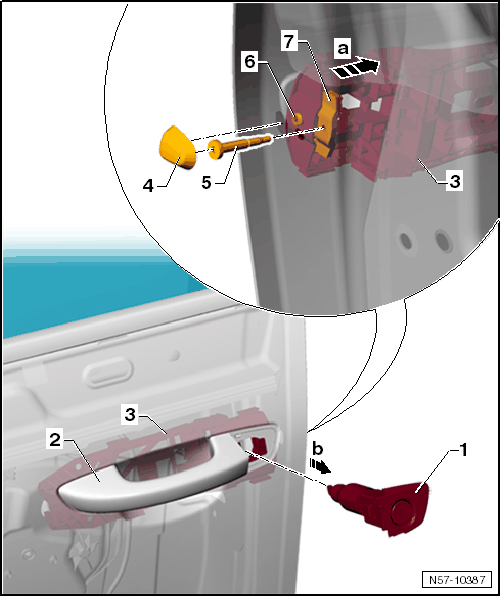

Fig 1: Identifying Lock Cylinder Housing -1-, Door Handle -2-, Bracket -3- And Bolts -5 To 6-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the door handle -2- from the door.

-- Insert the lock cylinder housing -1- into the mounting bracket -3- at a right angle.

-- Install the bolts -5 and 6- into the mounting bracket.

-- Tightening specification for bolts -5 and 6- : 3.5 Nm

NOTE:

The lock cylinder housing must be pressed onto the outer door panel while installing.

Installation is performed in reverse order of the removal.

Then, always perform a function test with door opened.
