SUBFRAME, Removing And Installing: Installing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

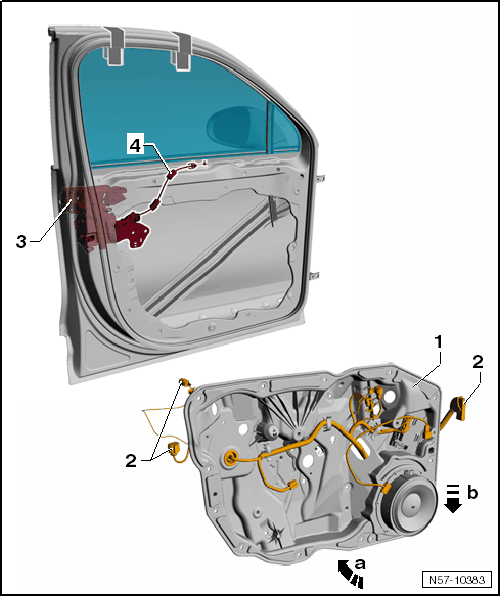

Fig 1: Identifying Harness Connectors -2- And Door Lock -3- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the harness connectors -2- to the door lock -3-.

-- Slide the subframe -1- upward at an angle in direction of -arrow a- into the door.

-- Guide the line -2- and release cable -4- into the door.

-- Slide the subframe -1- into the installation position in direction of -arrow b-.

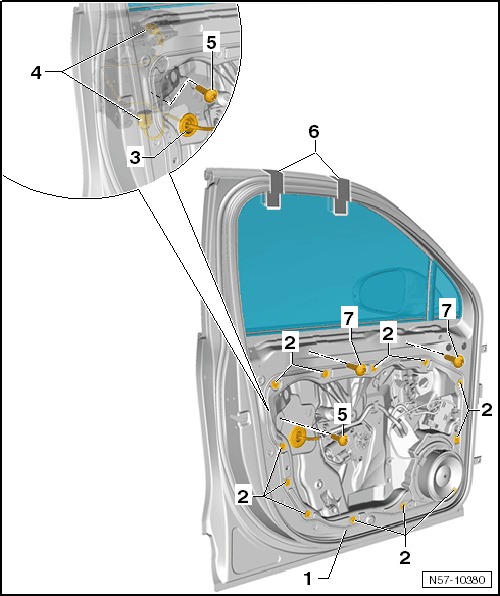

Fig 2: Identifying Subframe -1- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolt -5-, tightening specification: 2 Nm.

-- Tighten the bolts -7-, tightening specification: 8 Nm.

-- Tighten the bolts -2-, tightening specification: 8 Nm.

-- Continue by performing the steps used in removal in reverse order.

A function test must be performed before door trim is installed.
