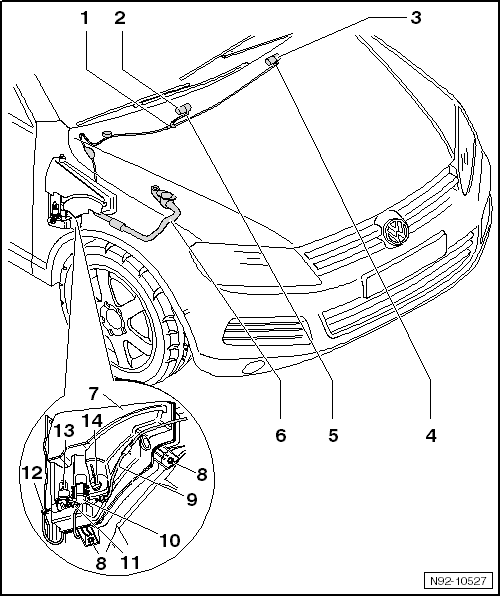

Overview - Windshield Washer System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
- Y - Connection
- Divides washer fluid line to washer nozzles of front windshield washer system
- Right Spray Nozzle
- Removing and installing. Refer to SPRAY NOZZLES, WINDSHIELD WASHER SYSTEM
- Adjusting. Refer to WINDSHIELD WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- Left Spray Nozzle
- Removing and installing. Refer to SPRAY NOZZLES, WINDSHIELD WASHER SYSTEM
- Adjusting. Refer to WINDSHIELD WASHER SYSTEM SPRAY NOZZLES, ADJUSTING .
- Angle Coupling
- Connection to left washer nozzle
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Angle Coupling
- Connection to right washer nozzle
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Windshield Washer System Reservoir Filler Tube
- Filler tube, removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Tank for Window Washer System
- Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING
- Screws
- 6 Nm
- M6 x 16
- Windshield washer fluid reservoir on the body
- Hose with Angle Connector
- Connection to headlamp washer system pump
- Hose repair. Refer to HOSES, REPAIRING .
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Headlamp Washer Pump
- Removing and installing. Refer to Headlamp Washer Pump -V11-
- Angle Coupling
- Connection to Windshield and Rear Window Washer Pump -V59-
- White, to the rear window
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Angle Coupling
- Connection to Windshield and Rear Window Washer Pump -V59-
- Black, to the windshield
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Windshield And Rear Window Washer Pump -V59-
- Removing and installing. Refer to Windshield And Rear Window Washer Pump -V59-
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to Windshield Washer Fluid Level Sensor -G33-
