Only Vehicles With Driver Assistance Systems Front Camera

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the camera cover. Refer to CAMERA COVER, REMOVING AND INSTALLING .

-- Carefully pry out the Rain/Light Recognition Sensor -G397- -1- with a flat-blade screwdriver.

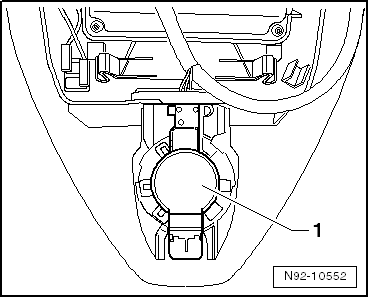

Fig 1: Identifying Rain/Light Recognition Sensor -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and disconnect the connector -1- and remove the Rain/Light Recognition Sensor -G397- -2-.

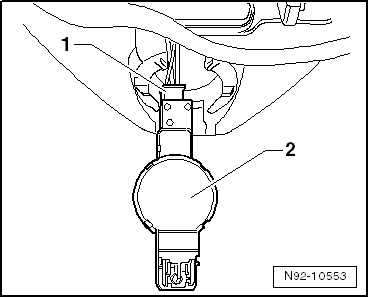

Fig 2: Identifying Connector -1- And Rain/Light Recognition Sensor -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
