Wiper Arms, Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Torque Wrench 1331 5-50Nm:VAG1331
Puller - Wiper Arm Kit - Puller 5:T10369/5

Driver Side

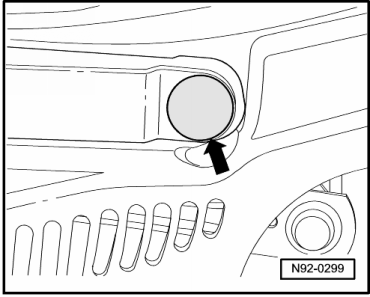

-- Pry off cover cap on the driver side -arrow- using a screwdriver.

Fig 1: Identifying Cover Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen nuts -arrow- but do not remove completely.

Fig 2: Identifying Mounting Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Gently move wiper arm up and down until it can be removed from wiper arm shaft.

-- Remove nut and remove wiper arm from wiper motor shaft.

Passenger Side

NOTE:

Only the wiper arm shaft depicted at right in illustration is driven.

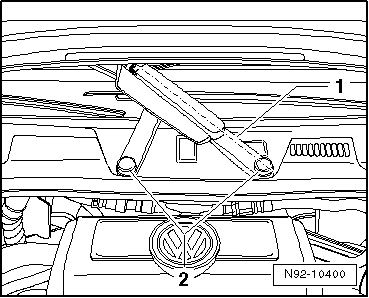

-- Bring the passenger wiper arm -1- by hand into the position illustrated so it is stretched out (dashes)

Fig 3: Identifying Passenger Wiper Arm Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the caps -2- out.

-- Remove both nuts -1 and 2- from the wiper arm shafts.

Fig 4: Identifying Passenger Wiper Arm Nuts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

The puller positioned on the wiper arm can spring away while pulling the end of the wiper arm.

Protect the surrounding components from damage.

NOTE:

When positioning the puller, make sure it lies directly on the metal part of the wiper arm and not under the plastic cap under the wiper arm.

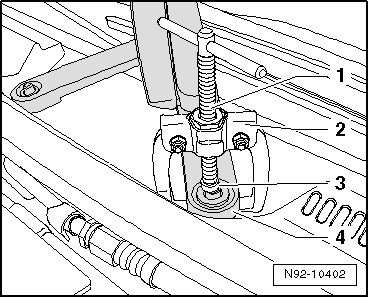

-- Mount the :T10369/5 -2- onto the end of the wiper arm -4- as shown in the illustration.

Fig 5: Identifying Passenger Wiper Arm Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the thrust piece -3- all the way and remove the wiper arm by turning the pressure bolt -1- clockwise.

-- Repeat this procedure on the second wiper arm shaft and remove the passenger wiper arm.
