Wiper Blade, Removing And Installing, Joint-Free Windshield Wiper, BOSCH

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Only Bosch manufactures wiper blades for joint-free wipers.

Wiper blades made by other manufacturers will not fit correctly and this will result in poor wiping.

NOTE:

See the >>Joint-Free Wiper Blade Characteristics<< chapter in the "Electrical Equipment General Information" repair manual.

-- Remove the joint-free wiper blade. Refer to WINDSHIELD WIPER, REMOVING AND INSTALLING

-- Check on which side the wiper blade cannot be moved in guide.

-- Carefully pry off cap -1- on side where wiper blade cannot be moved in guide.

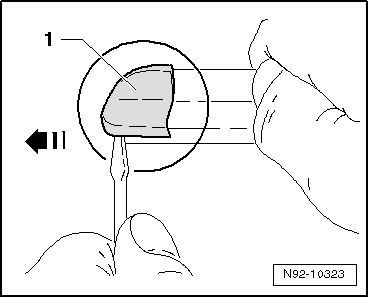

Fig 1: Carefully Pry Off Cap -1-, On Side Where Wiper Blade Cannot Be Moved In Guide

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Using a suitable screwdriver, open wiper blade retainer -A- by bending up.

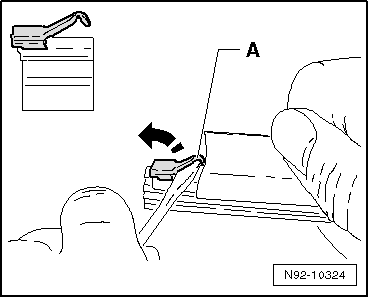

Fig 2: Bend open wiper blade locking mechanism

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace wiper blade.

NOTE:

Make sure that wiper inserts are seated correctly in wiper blade guides.

-- Press wiper insert retainer -A- back down with a suitable screwdriver until wiper insert can no longer slide into guide.

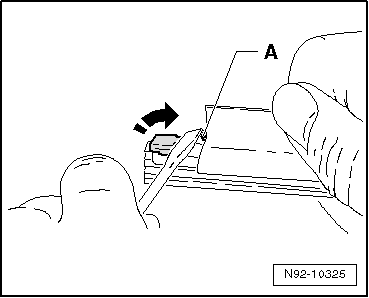

Fig 3: Push wiper blade locking mechanism down again until wiper blade can no longer be moved in guide

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Attach new cap -1- and check for proper seating.

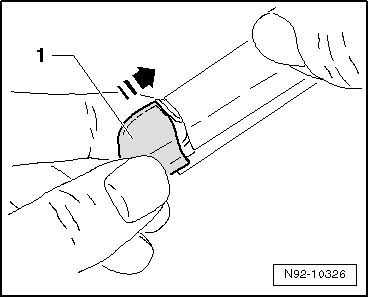

Fig 4: Attach new cap -1- and check for proper seating

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the wiper blade. Refer to WINDSHIELD WIPER, REMOVING AND INSTALLING .

-- Check wiper blade for proper function.
