Wiper Blade, Removing And Installing, Standard Windshield Wiper: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Right and left wiper blades may not be interchanged during installation.

Joint-free windshield wipers are very flexible. Grasp wiper blades only in area of wiper blade mount to lift them off the windshield.

-- Move the wiper into park position.

-- Turn off the ignition and all electric consumers and remove the key.

-- Fold up wiper arm.

-- Turn wiper blade -1- on wiper arm until it reaches stop in direction of -arrow A-.

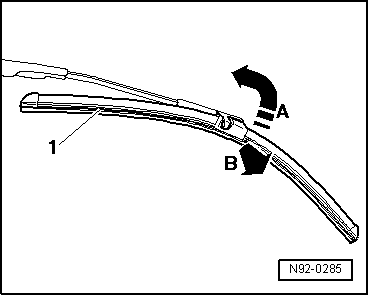

Fig 1: Identifying Removal Of Aero Windshield Wipers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull off wiper blade -1- from wiper arm axle -arrow B-.
