LASER SENSOR (Laser Distance Regulation Control Module -J1122-), ADJUSTING

Special tools and workshop equipment required

• Wheel Alignment Computer approved by VW/Audi
• Vehicle Diagnostic Tester
• Camera: VAS6331/1  or : VAS701001/1
• Setting Device - Basic Set: VAS6430/1  or Setting Device - Basic Set: VAS6430/1A
• Calibration Board Laser Scanner: VAS6430/12
• Mounting: VAS6430/12-1
• Calibration Tool - Linear Laser: VAS6350/3A
• Wrench - Driver: T10072

There are two options that can be selected for the calibration/adjustment:

The "complete alignment"

This procedure should be selected for the following activities if a wheel alignment and calibration/adjustment should be performed.

• The rear axle toe was adjusted.
• The vehicle suspension was changed, for example changing from standard to sport suspension.

The "Quick Start"

This procedure should be selected for the following activities if only the adjustment/calibration will be performed.

• The Laser Distance Regulation Control Module -J1122- was removed and installed or replaced.
• The mount for the Laser Distance Regulation Control Module -J1122- was removed and installed or replaced.
• The upper or lower impact member was removed and installed or replaced.
• The upper or lower impact member was loosened or moved.
• There is damage to the front bumper.

TIP:

• Both procedures are programmed in the wheel alignment computer. The procedure is automatically performed. The corresponding program for the procedure to be performed must be selected.
• If only the laser sensor calibration/adjustment should be performed, select the "quick start" mode on the wheel alignment computer.
• The procedure in the "quick start" mode is described in the information that follows.

TIP:

The following illustrations show the : VAS6430  together with the : VAS6430/7  .

Procedure

The procedure is described on a : VAS6331  .

The procedure may vary if using other wheel alignment computers. In this case, follow the instructions on the wheel alignment computer screen.

• Note the test requirements. Refer to the appropriate Service Information .
• Follow the measurement preparations for calibrating/adjusting the driver assistance systems. Refer to MEASUREMENT PREPARATIONS .

-- Check the laser sensors and retainers for damage, external influence and secure fit. Service damaged components.

-- Remove any dirt that may be on the laser sensor lens.

-- Check the front bumper cover for damage, cracks, and secure fit. Service damaged components.

-- Adjust to standard vehicle height and lock at that height. Refer to Air suspension .

-- Check the DTC memory for adaptive cruise control (ACC). Correct all displayed entries.

-- Drive the vehicle "straight" onto the alignment rack.

-- Move the wheels so that they are in a straight-ahead position.

-- Install quick-action clamps on the wheels.

-- Attach the reflectors to the quick-action clamps.

-- Perform the wheel run-out compensation. Refer to WHEEL RUN-OUT COMPENSATION .

-- Select the laser ACC calibration button in the wheel alignment computer.

• The : VAS6331  must not be moved on the calibration beam.

-- Attach the : VAS6430/12  centered on the : VAS6430  .

Courtesy of AUDI OF AMERICA, LLC

-- Position the camera : VAS6331/1  or : VAS701001/1  , not illustrated -5- on the right Mount: VAS6430/12-1  -2- and tighten it.

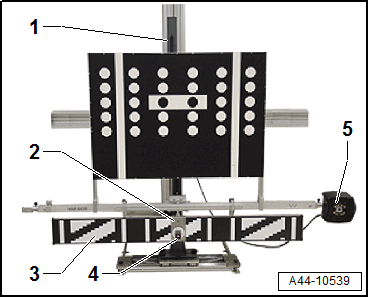

1. Setting Device - Basic Set: VAS6430/1A
2. Mount: VAS6430/12-1
3. Calibration Board Laser Scanner: VAS6430/12
4. Calibration Tool - Linear Laser: VAS6350/3A
5. Camera : VAS6331/1  or : VAS701001/1

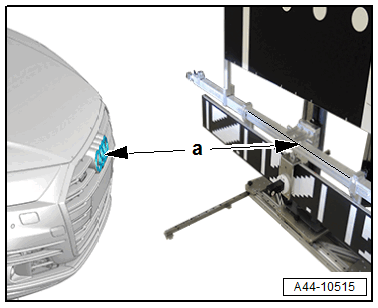

-- Position the Setting Device - Basic Set: VAS6430  at distance -a- from the edge of the crossbar -black line- to the Audi rings.

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = 130 to 132.5 cm

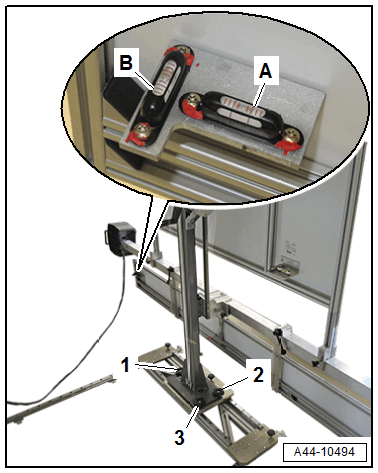

-- Using the adjusting screws -1, 2, and 3- bring the bubble levels -A and B- on the rear side of the : VAS6430/12  into a level position.

Courtesy of AUDI OF AMERICA, LLC

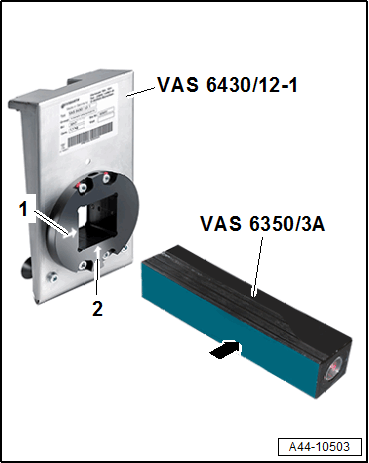

-- Switch on the : VAS6350/3A  and insert it in the : VAS6430/12-1  so that the lineal laser beam exits horizontally.

Courtesy of AUDI OF AMERICA, LLC

• The smooth, non-corrugated surface of the : VAS6350/3A  -arrow- that is shown in blue in the illustration must face toward the horizontal arrow -1- on the : VAS6430/12-1  .

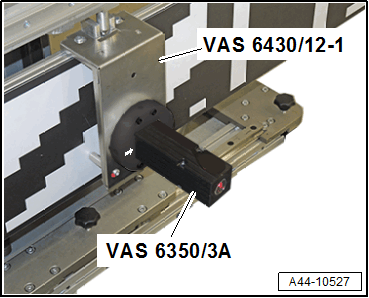

-- Engage the : VAS6430/12-1  with : VAS6350/3A  on the center of the : VAS6430/12  .

Courtesy of AUDI OF AMERICA, LLC

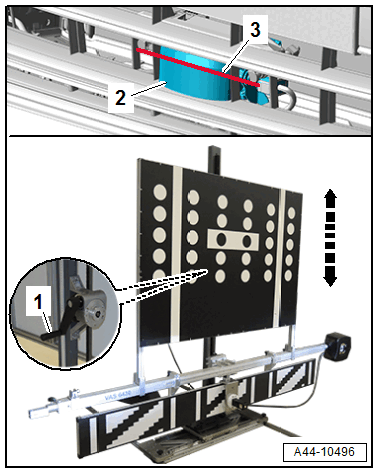

-- Adjust the : VAS6430/12  using the crank -1- on the : VAS6430  so that the lineal laser beam -3- meets the laser sensor lens -2- on the vehicle at the horizontal bend point on the lens.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the : VAS6430/12-1  with : VAS6350/3A  on the center of the : VAS6430/12  .

Courtesy of AUDI OF AMERICA, LLC

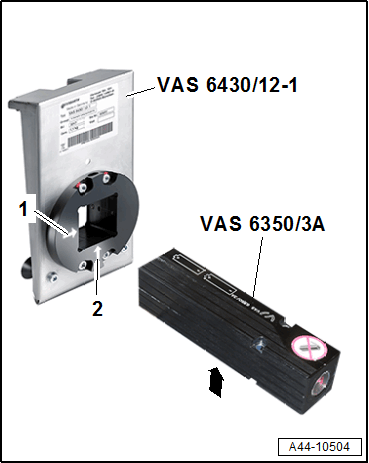

-- Rotate the : VAS6350/3A  90° so that the lineal laser beam exits vertically. Insert the : VAS6350/3A  all the way back into the : VAS6430/12-1  .

• The smooth, non-corrugated surface of the : VAS6350/3A  -arrow- must face toward the vertical arrow -2- on the : VAS6430/12-1  .

-- Engage the : VAS6430/12-1  with : VAS6350/3A  on the center of the : VAS6430/12  again.

Courtesy of AUDI OF AMERICA, LLC

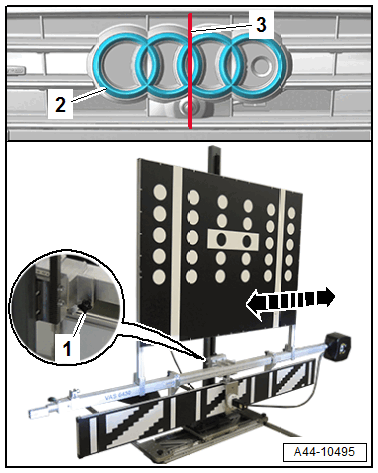

-- Move the : VAS6430  to the side in direction of -arrow- until the lineal laser beam -3- hits the vertical center of the Audi rings -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Turn the fine adjustment screw -1- until the display on the wheel alignment computer is within the tolerance range.

-- Check again:

• If the lineal laser beam from the : VAS6350/3A  hits the vertical center of the Audi rings.
• If the lineal laser beam from the : VAS6350/3A  hits at the horizontal bend point on the laser sensor lens.

• If the lineal laser beam from the : VAS6350/3A  hits the vertical center of the Audi rings after adjusting it with the fine adjustment screw, the : VAS6430  is set up (positioned) correctly.
• If the lineal laser beam does not hit the vertical center of the Audi rings, the : VAS6430  must be set up again.

• For the rest of the procedure, the : VAS6430/12-1  with the : VAS6350/3A  must be removed from the : VAS6430  .

-- Connect the Vehicle Diagnostic Tester.

-- Switch the ignition on.

-- Select and start the Diagnostic  operating mode.

-- Select the Test plan  tab.

-- Select the Select individual test  button and select the following tree structure consecutively:

• Diagnostic-capable systems
• 00CD - Laser Distance Regulation Control Module J1122
• 00CD - Laser Distance Regulation Control Module, functions
• 00CD - Calibrate control module

-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.

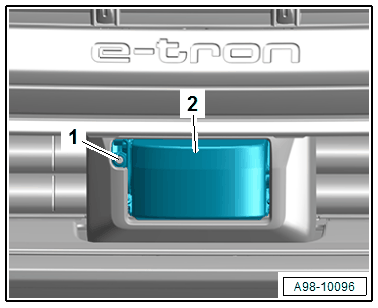

-- The Laser Distance Regulation Control Module - J1122- fine adjustment -2- is made using the screw -1- and the : T10072  .

Courtesy of AUDI OF AMERICA, LLC

-- Switch off the ignition.

-- Disconnect the Vehicle Diagnostic Tester from the data link connector.

-- Disconnect the battery charger. Refer to BATTERY, CHARGING .
