Control Module For Left And Right Front Object Detection Radar Sensor -J1088- / -J1089-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Component location. Refer to COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN FRONT SECTION OF VEHICLE .

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

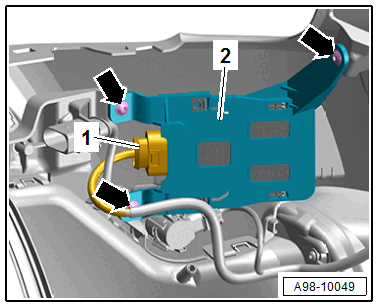

-- Remove the screws -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bracket -2- with the control module for left front object detection radar sensor.

-- Disconnect the connector -1-.

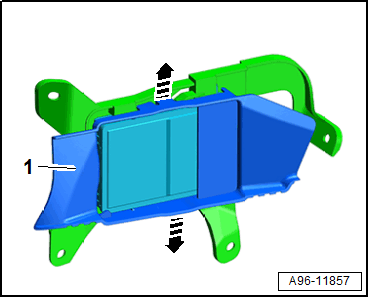

-- Release the catches in direction of -arrows- and remove the shield -1-.

Courtesy of AUDI OF AMERICA, LLC

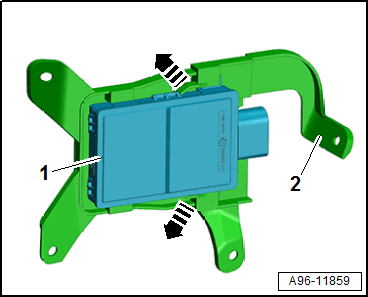

-- Release the retainers in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pull the radar sensor -1- back out of the mount -2- and remove.
