CLIP ON Control Module for Adaptive Cruise Control -J428-, REPLACING

Special tools and workshop equipment required

• Digital Caliper: VAS6335

The clips cannot be removed without being damaged.

Procedure

• Control Module for Adaptive Cruise Control -J428- removed from the retaining plate.

-- Remove the stud bolt -1- using a suitable tool -2-.

Fig 1: Identifying Stud Bolt Removal With Suitable Tool

Courtesy of AUDI OF AMERICA, LLC

-- Place a screwdriver between the hook and the housing.

Fig 2: Place A Screwdriver Between Hook And Housing

Courtesy of AUDI OF AMERICA, LLC

-- Bend every hook all the way around with the screwdriver until it audibly breaks off.

-- To prevent the broken hook from getting caught on the housing, remove it from the inside of the clip using needle nose pliers.

-- Insert the new clip in the hole in the housing, as shown and push in by hand until it clicks into place.

Fig 3: Insert New Clip Into Hole For Housing From Left Side And Push It In By Hand Until It Audibly Engages

Courtesy of AUDI OF AMERICA, LLC

• The tabs on the clip must sit correctly in the recesses.

-- Install the stud bolt.

Courtesy of AUDI OF AMERICA, LLC

• The stud bolt must be aligned correctly to the clip.

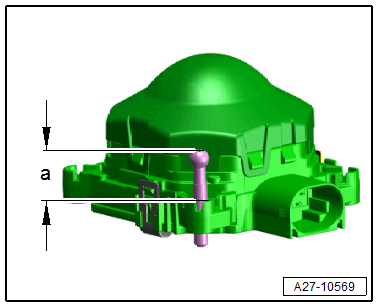

-- Turn the stud bolt into the control module for adaptive cruise control up to the dimension -a-.

-- Measure the dimension -a- at all stud bolts using the : VAS6335  and correct if necessary.

• Dimension -a- = 17.6 mm ± 0.5 mm.
