Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Component location COMPONENT LOCATION OVERVIEW - SENSORS AND CONTROL MODULES IN FRONT SECTION OF VEHICLE .
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

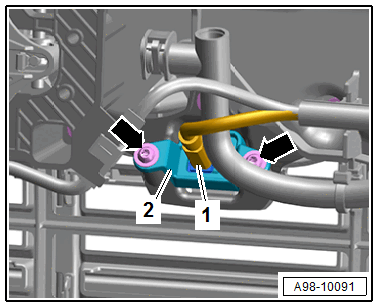

-- Remove the screws -arrows-.
-- Remove the mounting plate -2- with the front peripheral camera.
-- Disconnect the connector -1-.
