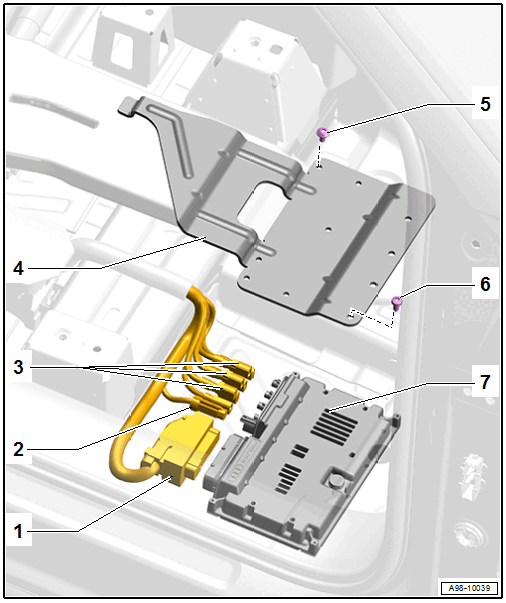

Overview - Driver Assistance Systems Control Module
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Antenna Wire
- Antenna Wires
- Mount
- For the Driver Assistance Systems Control Module -J1121-
- Bolt
- 6 Nm
- Quantity: 4
- Bolt
- 5 Nm
- Quantity: 4
- Driver Assistance Systems Control Module -J1121-
- Removing and installing. Refer to Driver Assistance Systems Control Module -J1121-, REMOVING AND INSTALLING .
