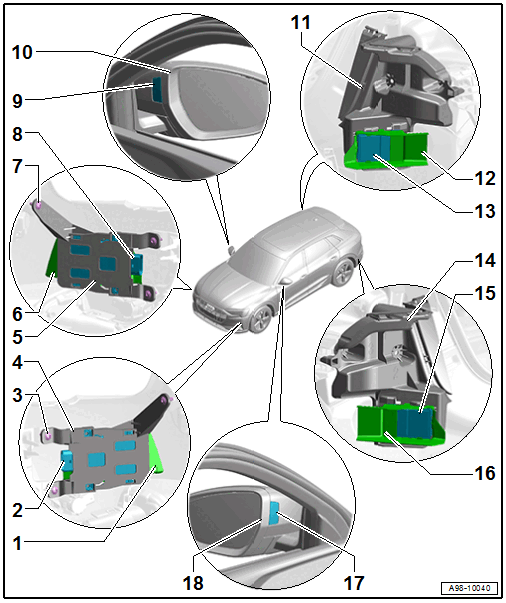

Overview - Lane Change Assistance
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Left Shield
- Control Module for Left Front Object Detection Radar Sensor -J1088-
- Removing and installing. Refer to CONTROL MODULE FOR LEFT AND RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1088- / -J1089-, REMOVING AND INSTALLING .
- Calibrating. Refer to FRONT CORNER RADAR, CALIBRATING .
- Bolt
- 2 Nm
- Quantity: 3
- Bracket
- For the control module for left front object detection radar sensor
- Bracket
- For the control module for left front object detection radar sensor
- Right Shield
- Bolt
- 2 Nm
- Quantity: 3
- Control Module for Right Front Object Detection Radar Sensor -J1089-
- Removing and installing. Refer to CONTROL MODULE FOR LEFT AND RIGHT FRONT OBJECT DETECTION RADAR SENSOR -J1088- / -J1089-, REMOVING AND INSTALLING .
- Calibrating. Refer to FRONT CORNER RADAR, CALIBRATING .
- Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Exterior Rearview Mirror
- Bracket
- For lane change assistance control module
- Right Shield
- Lane Change Assistance Control Module -J769-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- Bracket
- For lane change assistance control module
- Lane Change Assistance Control Module 2 -J770-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- Left Shield
- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Exterior Rearview Mirror
