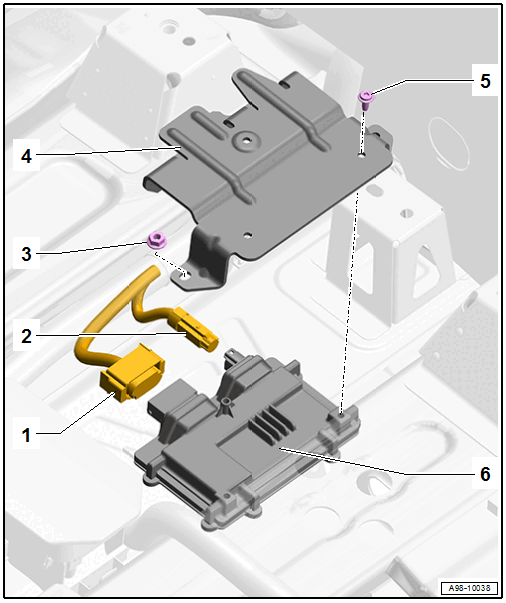

Overview - Night Vision System Control Module
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- Antenna Connector
- Nut
- 8 Nm
- Quantity: 3
- Bracket
- For the Night Vision System Control Module - J853-
- Bolt
- 8 Nm
- Quantity: 3
- Night Vision System Control Module -J853-
- Removing and installing. Refer to Night Vision System Control Module -J853-, REMOVING AND INSTALLING .
- Calibrating. Refer to NIGHT VISION SYSTEM, CALIBRATING .
