External Audio Source Connection -R199-, CONNECTOR ASSIGNMENT, AUX IN

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Unlisted connector terminals are not assigned.

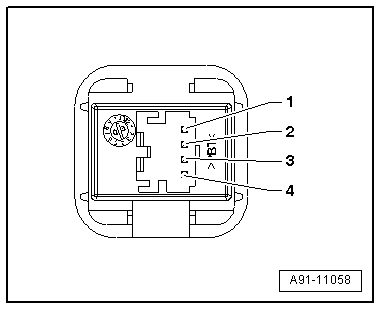

Fig 1: 4-Pin Connector (T4i)
GWWA91-11058Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Radio -R-.

  1. LF ground
  2. LF left
  3. LF right
  4. Terminal 31

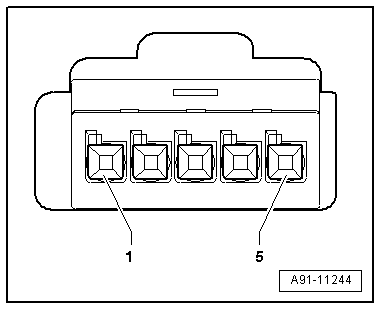

Fig 2: 5-Pin Multi-Pin Connector (T5g) (MMI)
GWWA91-11244Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

  1. LF ground
  2. LF left
  3. LF right
  4. Ground Shielding
  5. Detect
