Navigation Connector Assignment (Japan)

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

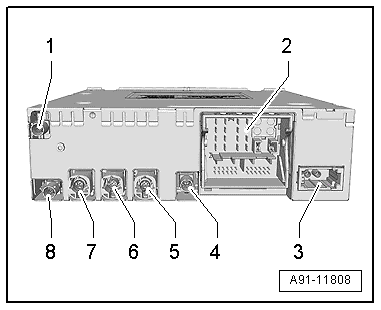

Fig 1: Identifying Cell Phone Preparation Connector Assignment, MMI, 9ZF

Courtesy of AUDI OF AMERICA, LLC

Not Assigned
Connection block with four multipin connectors
MOST Bus
CVBS input (Green) from the TV Tuner -R78-
4-pin connector (T4am) for the Front Information Display Control Head -J685-
4-pin connector (T4ap) to External Audio Source Connection -R199-
Not Assigned
Antenna Connection (GPS) from the Roof Antenna -R216-

NOTE:

Unlisted connector terminals are not assigned.

2 - Connection block with four multipin connectors

Fig 2: A - 8-Pin Connector (T8k)

Courtesy of AUDI OF AMERICA, LLC

Not Assigned
Power Supply to Multimedia System Control Head -E380-
Wake UP to Multimedia System Control Head -E380-
Not Assigned
Switch on signal from Chip Card Reader Control Module -J676-
Reset to the Multimedia System Control Head -E380-
Ring-break Diagnostic Cable

Fig 3: A - 8-Pin Connector (T8k)

Courtesy of AUDI OF AMERICA, LLC

Not Assigned
Microphone IN (+) for the Microphone Unit in Front Roof Module -R164- (Right Front Microphone -R141-)
Microphone IN (-) for the Microphone Unit in Front Roof Module -R164- (Right Front Microphone -R141-)
VICS data to Chip Card Reader Control Module -J676-
CVBS cable (-) for the Rearview Camera System Control Module -J772-
ETC data to Chip Card Reader Control Module -J676-
Not Assigned
Microphone IN (+) for the Microphone Unit in Front Roof Module -R164- (Left Front Microphone -R140-)
Microphone IN (-) for the Microphone Unit in Front Roof Module -R164- (Left Front Microphone -R140-)
VICS data from the Chip Card Reader Control Module -J676-
CVBS cable (+) for the Rearview Camera System Control Module -J772-
ETC data from the Chip Card Reader Control Module -J676-

Fig 4: A - 8-Pin Connector (T8k)

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the External Audio Source Connection -R199-.

LF-In ground
Right LF-In
USB (+5V)
USB (ground)
Not Assigned
Detect
Left LF-In
LF-In ground shielding
CVBS cable (+)
CVBS cable (-)
iPod data
iPod data

Fig 5: A - 8-Pin Connector (T8k)

Courtesy of AUDI OF AMERICA, LLC

10 -

Data from Multimedia System Control Head -E380-

11 -

Data to the Multimedia System Control Head -E380-

12 -

Terminal 31

14 -

Reset from Multimedia System Control Head -E380-

15 -

Terminal 30

16 -

Ground to Multimedia System Control Head -E380-

Fig 6: 2 - MOST Bus

Courtesy of AUDI OF AMERICA, LLC

Input
Output
