Component Location Overview - Sound System, Basic/Standard
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

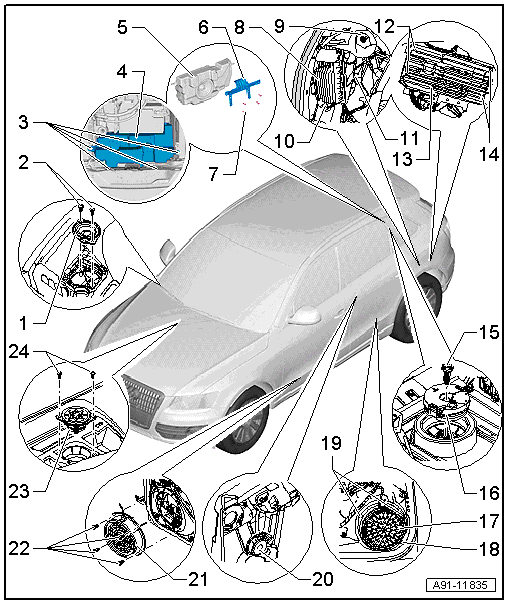

- Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
- Removing and installing, refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING .
- Bolt
- 1 Nm
- Bolt
- 5 Nm
- Subwoofer in Rear Shelf -R157- (High Voltage Vehicle)
- Removing and Installing, High Voltage Vehicle, refer to Subwoofer in Rear Shelf -R157-, REMOVING AND INSTALLING, HIGH VOLTAGE VEHICLE
- Subwoofer in Rear Shelf -R157- (High Voltage Vehicle)
- Support (High Voltage Vehicle)
- Bolt
- 2 Nm
- Digital Sound System Control Module -J525-
- Connector Assignment (CAN), refer to SOUND SYSTEM CONNECTOR ASSIGNMENTS STANDARD, CAN .
- CAN, Removing and Installing, refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, CAN
- MMI, Removing and Installing, refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, MMI .
- Nut
- 3 Nm
- Nut
- 3 Nm
- Nut
- 3 Nm
- Bolt
- 3.5 Nm
- Digital Sound System Control Module -J525-
- Bolt
- 3.5 Nm
- Bolt
- 2 Nm
- Subwoofer in Rear Shelf -R157-
- Removing and installing, refer to Subwoofer In Rear Shelf -R157-, REMOVING AND INSTALLING .
- Left Rear Mid-Bass Speaker -R159- /Right Rear Mid-Bass Speaker -R160-
- Removing and installing, refer to REAR MID-BASS SPEAKER, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Bolt
- 3 Nm
- Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
- Removing and installing, refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
- Left Front Mid-Bass Speaker -R101- /Right Front Mid-Bass Speaker -R102-
- Removing and installing, refer to FRONT MID-BASS SPEAKER AND FRONT BASS SPEAKER, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Center Mid-Treble Speaker -R158-
- Removing and installing, refer to Center Mid-Treble Speaker -R158- .
- Bolt
- 1 Nm
