Active Steering Control Module Connector End View (J792, T5d, T8g, T10h)

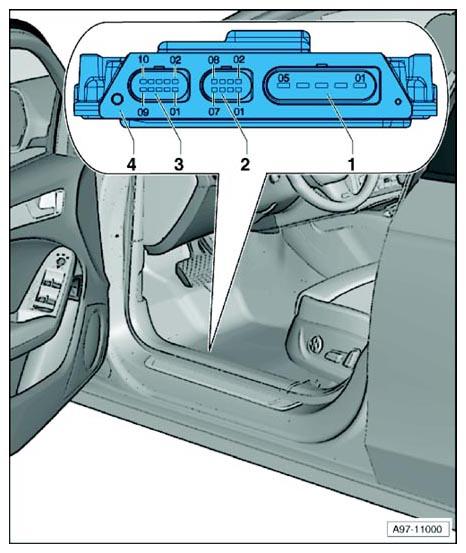

Fig 1: Active Steering Control Module Connector End View (J792, T5d, T8g, T10h)

4	Active Steering Control Module -J792-
Pin Connectors
1	5-Pin Connector, black -T5d-
2	8-Pin Connector, black -T8g-
3	10-Pin Connector, black -T10h-
