Comfort System Central Control Module Connector End View (J393, T17o, T32c, T17p, T32e, T32d, T1h)

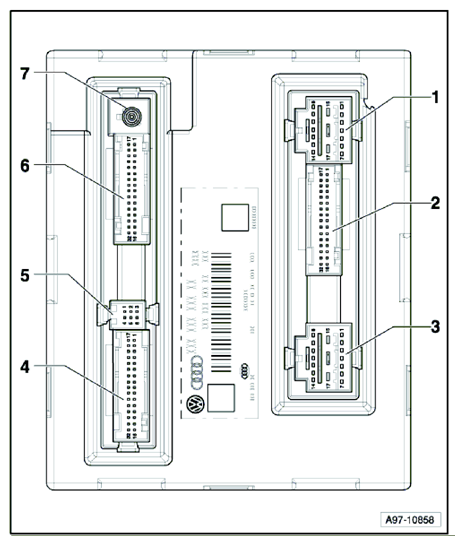

Fig 1: Comfort System Central Control Module Connector End View (J393, T17o, T32c, T17p, T32e, T32d, T1h)

1	17-Pin Connector, black (Connector A) -T17o-
2	32-Pin Connector, black (Connector B) -T32c-
3	17-Pin Connector, brown (Connector C) -T17p-
4	32-Pin Connector, blue (Connector F) -T32e-
5	6-Pin Connector (Connector G) -nicht belegt-
6	32-Pin Connector, grey (Connector E) -T32d-
7	Single Connector, grey (Connector D) -T1h-
