Parallel Parking Assistance Control Module Connector End View (J791, T16e, T12e, T12g)

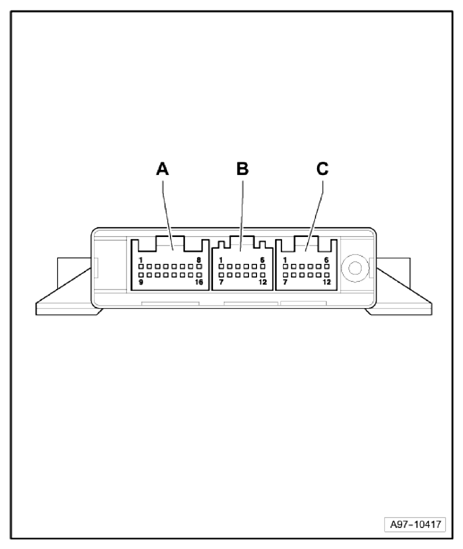

Fig 1: Parallel Parking Assistance Control Module Connector End View (J791, T16e, T12e, T12g)
G10359930
A 16-Pin Connector, brown -T16e-
B 12-Pin Connector, brown -T12e-
C 12-Pin Connector, black -T12g-
