Comfort System Central Control Module Connector End View (J393, T17s, T32i, T17r, T2co, R47, T32g, T32h)

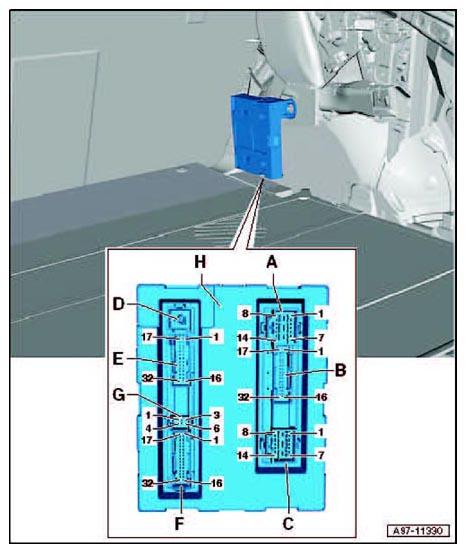

Fig 1: Comfort System Central Control Module Connector End View (J393, T17s, T32i, T17r, T2co, R47, T32g, T32h)
| A | 17-Pin Connector -T17s-, black |
| B | 32-Pin Connector -T32i-, black |
| C | 17-Pin Connector -T17r-, brown |
| D | Double Connector -T2co-, Connector Central Locking and Anti-Theft Alarm System Antenna -R47- |
| E | 32-Pin Connector -T32g-, grey |
| F | 32-Pin Connector -T32h-, blue |
| G | Not used |
| H | Comfort System Central Control Module -J393- |
