Electronic Steering Column Lock Control Module Connector End View (J764, t6p)

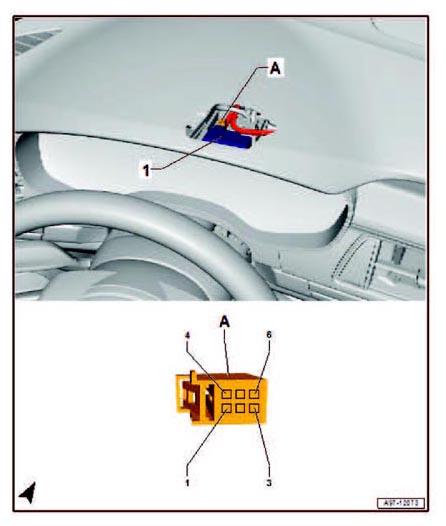

| 1 | Electronic Steering Column Lock Control Module -J764- |
| A | 6-Pin Connector -T6p-, black |
Pin Arrangements Electronic Steering Column Lock Control Module -J764-
| -T6p- (A) | Designation |
| 1 | Terminal 15 from Comfort System Central Control Module -J393- |
| 2 | Vehicle Electrical System Control Module -J519- |
| 3 | Terminal 31, to (199) Ground Connection 3 (in instrument panel wiring harness) (45) Ground Connection (behind instrument panel, center) |
| 4 | Comfort System Central Control Module -J393- |
| 5 | LIN-Bus, (A209) LIN bus connection 1 (in instrument panel wiring harness) Comfort System Central Control Module -J393- |
| 6 | Terminal 30, from Fuse Panel C -SC- |
