Parallel Parking Assistance Control Module Connector End View (J791, T16i, T12w, T12q)

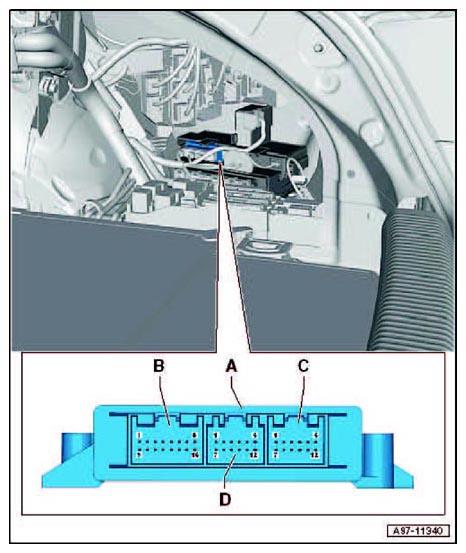

Fig 1: Parallel Parking Assistance Control Module Connector End View (J791, T16i, T12w, T12q)
G10360098Courtesy of AUDI OF AMERICA, LLC
A Parallel Parking Assistance Control Module -J791-
B 16-Pin Connector -T16i-, brown
C 12-Pin Connector -T12w-, black
D 12-Pin Connector -T12q-, brown
