Selector Lever Cable, Checking And Adjusting

Special Tools And Workshop Equipment Required

Trim Removal Wedge 3409
Socket And Key T40031

Procedure

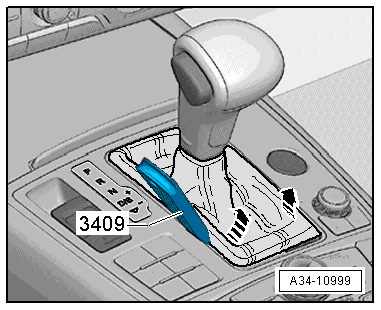

Fig 1: Identifying Trim Removal Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Press the button on the electro-mechanical parking brake to activate it.

-- Move the selector lever into "D".

-- Carefully pry out the selector lever boot on the side using the Trim Removal Wedge 3409 -arrows- and fold it upward.

-- Insert the Socket And Key T40031 through the opening -arrow- in the selector mechanism and loosen the bolt on the selector lever cable approximately one turn.

Fig 2: Insert T40031 Through Opening In Selector Mechanism And Loosen Bolt On Selector Lever Cable One Turn

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Only loosen the clamping screw - do not remove it.

The clamping screw is only accessible when the selector lever is in "D".

The selector lever must remain in "D" when the clamping screw is loose.

-- Carefully move the selector forward and back gently without shifting into another selector lever position. This releases the tension in the selector lever cable.

-- Tighten the clamping screw in this position with the Socket And Key T40031 without touching the selector lever.

-- Check the selector mechanism, refer to GEARSHIFT MECHANISM, CHECKING .

If shift mechanism does not function properly after adjusting selector lever cable:

-- Bring the selector lever cable into the basic setting, refer to SELECTOR LEVER CABLE, BRINGING INTO BASIC SETTING .

Tightening Specifications

Refer to OVERVIEW - SELECTOR LEVER CABLE
