Shift Lock Solenoid -N110-, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

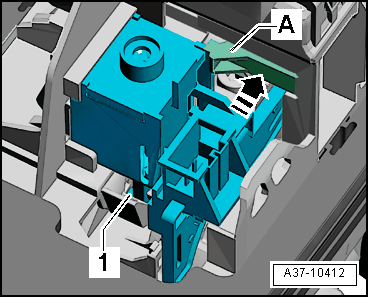

-- Turn the ball head -1- into the correct installed position.

-- Install the Shift Lock Solenoid -N110- at an angle into the selector mechanism and then tilt it opposite the direction of -arrow-.

• The ball head -1- must engage completely in the operating lever on shift mechanism. Press it down using a small screwdriver if necessary.
  Fig 1: Pressing Retaining Hooks Into Shift Mechanism

  Courtesy of AUDI OF AMERICA, LLC

-- Attach the Shift Lock Solenoid -N110- to the hook -A-.

-- Position the cover -A- over the Shift Lock Solenoid -N110- and carefully lock it in -1 through 3-.

Fig 2: Identifying Shift Mechanism

Courtesy of AUDI OF AMERICA, LLC

-- Connect the electrical connectors.

-- Check the shift mechanism function before completing assembly, refer to GEARSHIFT MECHANISM, CHECKING .

-- Install the front ashtray or storage compartment, refer to FRONT ASHTRAY/STORAGE COMPARTMENT .
