Component Location Overview - Navigation System, Japan, Through My 2014

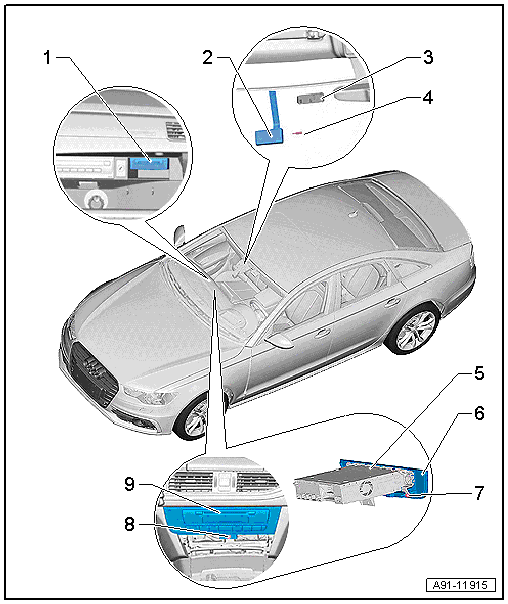

Fig 1: Component Location Overview Of Navigation System, Japan, Through My 2014

Courtesy of AUDI OF AMERICA, LLC

1. Chip Card Reader Control Module -J676-
   • Connector assignment. Refer to Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENT, THROUGH MY 2014 .
   • Removing and installing. Refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
2. Traffic Data Antenna -R173-
   • Removing and installing. Refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
3. Bracket
   • Glued to the windshield
4. Safety piece
5. Information Electronics Control Module 1 -J794-
6. Trim
7. Bolt
   • Quantity: 4
   • 1 Nm
8. Bolt
   • 3 Nm
9. Information Electronics Control Module 1 -J794-
   • Navigation plus connector assignment, 7T6. Refer to appropriate SYSTEM WIRING DIAGRAMS information.
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
