Image Processing Control Module Connector End View (J851, T12i, T5i)

Fig 1: Image Processing Control Module Connector End View (J851, T12i, T5i)

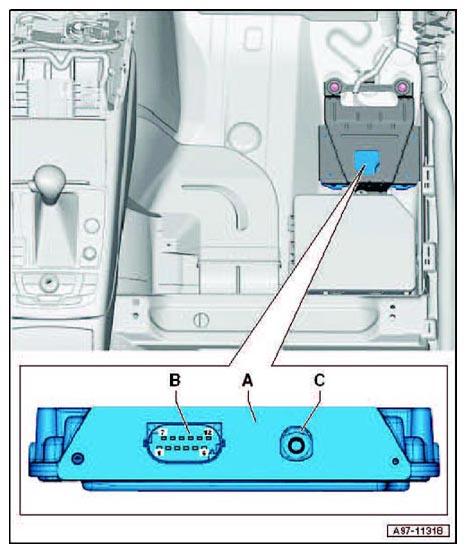

G10360048Courtesy of AUDI OF AMERICA, LLC
A Image Processing Control Module -J851-
B 12-Pin Connector -T12i-, black
C 5-Pin Connector -T5i-, black


Fig 1: Image Processing Control Module Connector End View (J851, T12i, T5i)

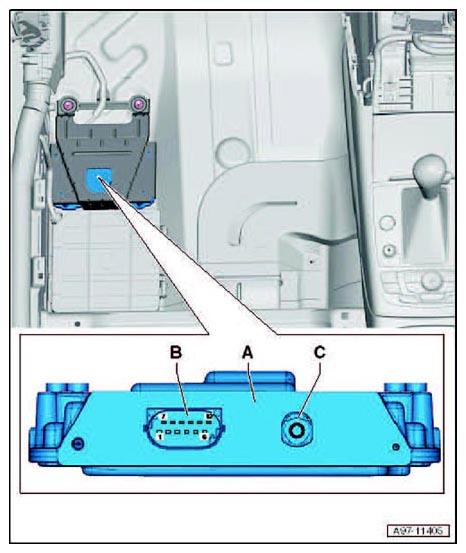

G10360049Courtesy of AUDI OF AMERICA, LLC
A Image Processing Control Module -J851-
B 12-Pin Connector -T12i-, black
C 5-Pin Connector -T5i-, black
