Left Rear Door Control Module -J388- And Right Rear Door Control Module -J389-, Removing And Installing

Removing

-- Push the release downward and disconnect the connectors.

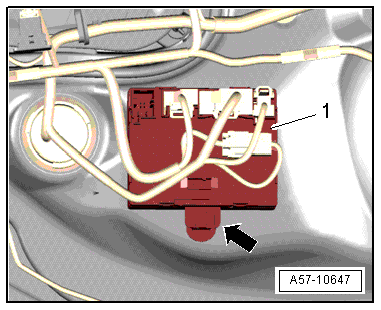

Fig 1: Disengage The Door Control Module -1-
GWWA57-10647Courtesy of AUDI OF AMERICA, LLC

-- Press the catch in direction of -arrow- and disengage the door control module -1- from the door shell.

Installing

-- Installation in reverse order of removal making sure the retainer locks into the inner door panel.
