Rear Lid Control Module -J605-, Removing And Installing, Sedan

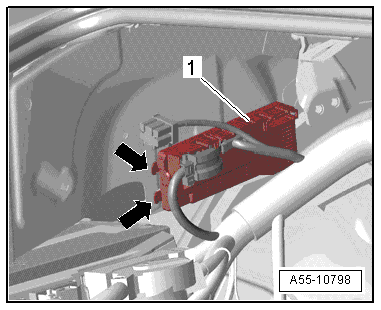

Fig 1: Identifying Rear Lid Control Module -J605-, Sedan

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment side trim panel. Refer to Description and Operation .

-- Disconnect the connectors from the control module.

-- Open the retainers -arrows- and remove the control module -1- to the rear.

-- Insert the control module into the bracket and then slide it forward until it clicks into place.
