Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

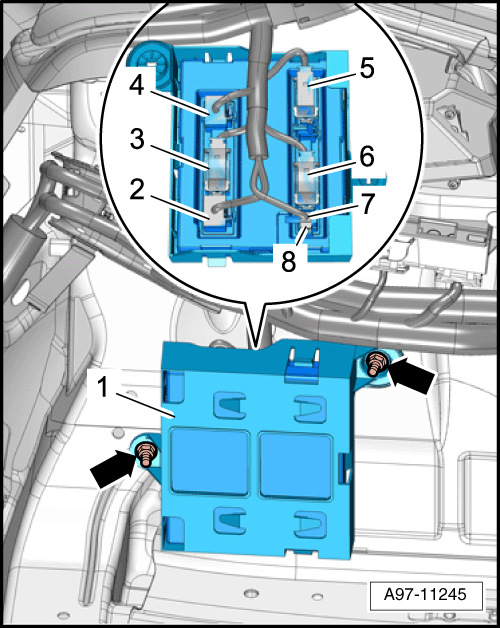

Fig 1: Locating Nuts And Frame

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right luggage compartment side trim panel. Refer to Luggage Compartment Trim Panels .

-- Remove the nuts -arrows- and turn the frame -1- with the central control module.

-- Disconnect the connectors -2 and 4-.

-- Pull the retainer -7- carefully and disconnect the antenna connector -8-.

-- Disconnect the connectors -3, 5 and 6-.

-- To disconnect the connector, press the retainer -1-, turn the bracket in direction of -arrow- and disconnect the connector.

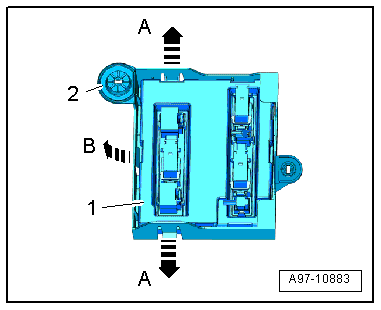

Fig 2: Identifying Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Release the mounting tabs -A arrows- and remove the Comfort System Central Control Module -J393- -item 1- from the frame -2- -arrow B-
