Overview - Front Display And Control Head, "Basic" Version

General Information, refer to CONTROL HEAD .

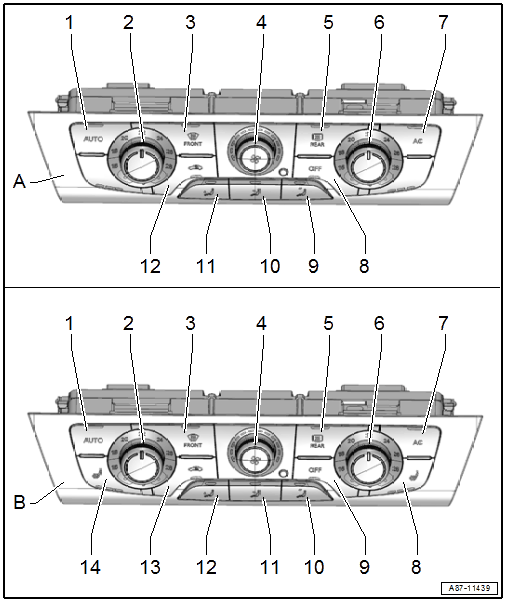

Fig 1: Front Display And Control Head, "Basic" Version, Overview

Courtesy of AUDI OF AMERICA, LLC

1. A - Climatronic Control Module -J255- Control Head for Vehicles Without Seat Heating
   • With infrared sensor for temperature and sunlight Determines the temperature and sunlight on the display and control unit
2. Auto Button for Automatic A/C System Control
   • Illuminated LED indicates the "Automatic control" function is selected
3. Driver Side Temperature Preset Regulator
4. Defrost Mode Button
   • Illuminated LED indicates the "defrost mode" function is selected.
5. Knob for Fresh Air Blower -V2-
   • For setting the blower speed
6. Rear Window Defogger Button
   • Illuminated LEDs indicate the "Rear window defogger on" function is selected.
7. Front Passenger Side Temperature Preset Regulator
8. A/C
   • Illuminated LED indicates the "A/C compressor on" function is selected
9. OFF  -Button for the Hearing and the Climate Controls
   • Illuminated LED indicates the "off" function is selected.
10. Button for Setting the Air Distribution - Instrument Panel Vent/Defrost
    • Illuminated LED indicates the function selected.
11. Button for Setting the Air Distribution - Instrument Panel Vent
    • Illuminated LED indicates the function selected.
12. Button for Setting the Air Distribution - Footwell Vent
    • Illuminated LED indicates the function selected.
13. Recirculation Mode Button
    • Illuminated LEDs indicate the "recirculated-air mode" function is selected.
    • The "recirculated-air mode" function is canceled when the defrost mode button (air to the windshield) is pressed
14. Climatronic Control Module -J255- Control Head for Vehicles with Seat Heating
    • With infrared sensor for temperature and sunlight Determines the temperature and sunlight on the display and control unit
15. Auto Button for Automatic A/C System Control
    • Illuminated LED indicates the "Automatic control" function is selected
16. Driver Side Temperature Preset Regulator
17. Defrost Mode Button
    • Illuminated LED indicates the "defrost mode" function is selected.
18. 4 - Knob for Fresh Air Blower -V2-
    • For setting the blower speed
19. 5 - Rear Window Defogger Button
    • Illuminated LEDs indicate the "Rear window defogger on" function is selected.
20. 6 - Front Passenger Side Temperature Preset Regulator
21. 7 - A/C Button for A/C Compressor
    • Illuminated LED indicates the "A/C compressor on" function is selected
22. 8 - Right Seat Heating Button
    • Illuminated LED indicates the level selected.
    • The selected level is set back one unit after a pre-set time, refer to FRONT SEAT HEATING, CHECKING => Depending on the vehicle, the seat heating setting automatically reduces after a certain amount of time (for example, after 10 minutes), refer to the Owner's Manual.
23. 9 - OFF-Button for the Hearing and the Climate Controls
    • Illuminated LED indicates the "off" function is selected.
24. 10 - Button for Setting the Air Distribution - Instrument Panel Vent/Defrost
    • Illuminated LED indicates the function selected.
25. 11 - Button for Setting the Air Distribution - Instrument Panel Vent
    • Illuminated LED indicates the function selected.
26. 12 - Button for Setting the Air Distribution - Footwell Vent
    • Illuminated LED indicates the function selected.
27. 13 - Recirculation Mode Button
    • Illuminated LEDs indicate the "recirculated-air mode" function is selected.
    • The "recirculated-air mode" function is canceled when the defrost mode button (air to the windshield) is pressed
28. 14 - Left Seat Heating Button
    • Illuminated LED indicates the level selected.
    • The selected level is set back one unit after a pre-set time, refer to FRONT SEAT HEATING, CHECKING => Depending on the vehicle, the seat heating setting automatically reduces after a certain amount of time (for example, after 10 minutes), refer to the Owner's Manual.
