Power Adjustable Steering Column Control Module -J866-, Removing And Installing: Installing
Install in reverse order of removal. Note the following:

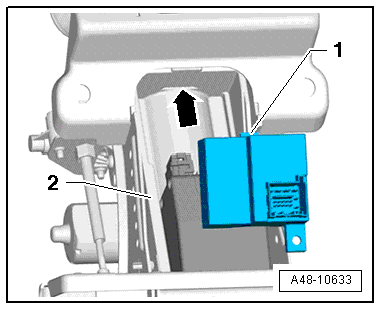

-- Install the Power Adjustable Steering Column Control Module -J866- with the pin -1- into the groove -arrow- on the steering column -2-.
- Perform a basic setting on the steering column if the Power Adjustable Steering Column Control Module -J866- was replaced.
-- Connect the Vehicle Diagnostic Tester and proceed with a vehicle-specific entry in Guided Functions .
-- Select the program in Guided Functions under the address "09 - electronic central electric".
-- Follow the prompts on the screen.
