External Audio Source Connection -R199- CONNECTOR ASSIGNMENT, USB (QUANTITY: 2), AUX IN

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S6, 2015 Audi A6 Quattro, 2015 Audi A6, 2014 Audi S6, and 2014 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Unlisted connector terminals are not assigned.

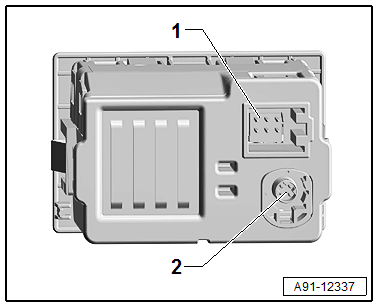

Fig 1: Identifying External Audio Source Connection -R199-

Courtesy of AUDI OF AMERICA, LLC

6-Pin Connector -T6cf-
5-Pin Connector -T5bp-

Fig 2: 1 - 6-Pin Connector -T6cf-

Courtesy of AUDI OF AMERICA, LLC

Terminal 30
Terminal 31
USB, +5 V
Right LF-In
LF ground
Left LF-In

Fig 3: 2 - 5-Pin Connector -T5bp-

Courtesy of AUDI OF AMERICA, LLC

All pins are connected to the Information Electronics Control Module 1 -J794-.

USB 2 D (+)
USB 1 D (-)
USB 2 D (-)
USB 1 D (+)
Ground Shielding
