Control Module Bracket Version 1:

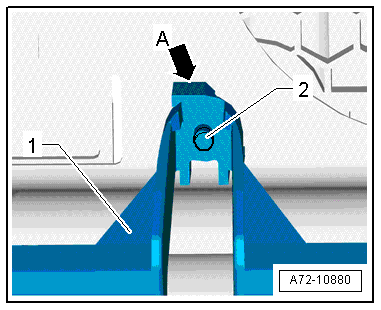

Fig 1: Bracket -1- & Pin -2-

Courtesy of AUDI OF AMERICA, LLC

-- Press pin -2- out of the clip -arrow A- of the bracket -1- in the direction of the seat cushion using, for example, an upholstery needle.

-- Remove the pin that was pressed out from the seat pan.

-- Remove the support foot -2- from the upper frame of seat pan -1-, unclipping clip -arrow A- at the upper seat frame.

-- Detach retaining tabs -arrow B- on both sides.

-- Carefully remove bracket from the seat pan in direction of -arrow-.

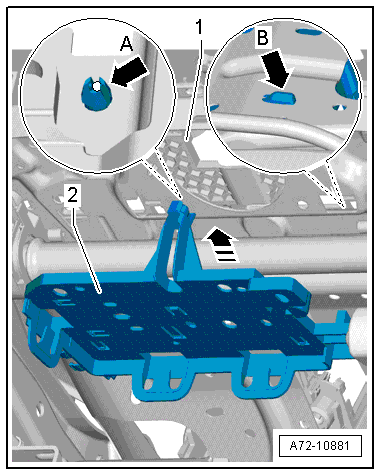

Fig 2: Bracket -2-

Courtesy of AUDI OF AMERICA, LLC
