Overview - Driver Assistance Systems Front Camera, Image Processing Control Module -J851- Component Location

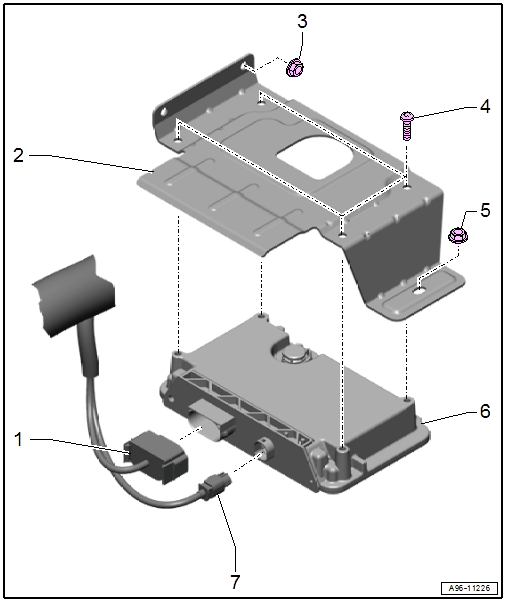

Fig 1: Overview Of Driver Assistance Systems Front Camera, Image Processing Control Module -J851- Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Connector
2. Bracket
   • For Image Processing Control Module -J851-
3. Nut
   • 2.5 Nm
   • Quantity: 2
4. Bolt
   • 6 Nm
   • Quantity: 4
5. Nut
   • 2.5 Nm
6. Image Processing Control Module -J851-
   • Removing and installing, refer to Image Processing Control Module -J851-, REMOVING AND INSTALLING .
7. Antenna Wire
