Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

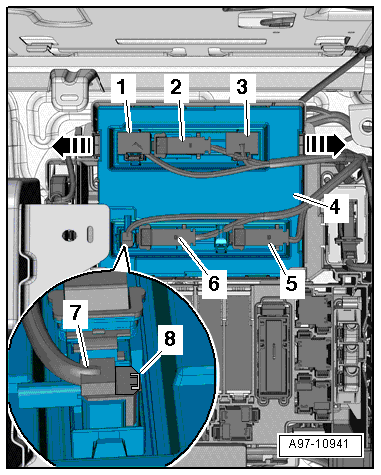

Fig 1: Identifying Comfort System Central Control Module -J393- -Item 4-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the luggage compartment rear trim panel, refer to LUGGAGE COMPARTMENT TRIM PANELS .

-- Release the mounting tabs -arrows- and remove the Comfort System Central Control Module -J393- -item 4- from the frame.

-- Disconnect the electrical connectors -1- and -3-.

-- Pull the retainer -8- carefully and disconnect the antenna connector -7-.

-- Disconnect the connectors -2, 5 and 6-.

-- To disconnect the connector, press the retainer -1-, turn the bracket in direction of -arrow- and disconnect the connector.

Fig 2: Identifying Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC
