Distance Regulation Control Module -J428- /Distance Regulation Control Module 2 -J850-, REMOVING AND INSTALLING: Removing

-- Remove the air intake grille, refer to ATTACHMENTS, REMOVING AND INSTALLING .

-- Unclip the cover.

-- Remove the bolts -1 to 4-.

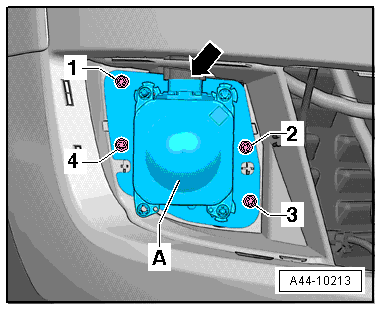

Fig 1: Identifying Distance Regulation Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Remove the distance regulation control module -A- from the bumper cover.

NOTE:

Clean and dry the area around the control module connector.

-- Disconnect the connector -arrow-.
