Display And Control Unit Overview, Rear

General Information, refer to A/C SYSTEM CONTROL AND REGULATION COMPONENTS INSIDE PASSENGER COMPARTMENT .

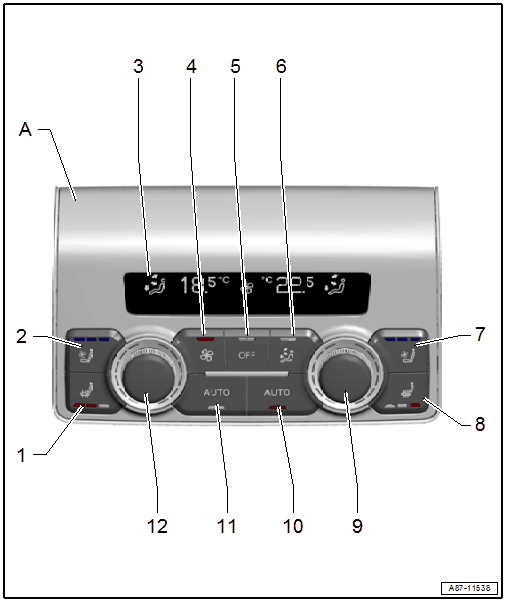

Fig 1: Rear Display And Control Unit Component Location Overview

Courtesy of AUDI OF AMERICA, LLC

1. A -

   Rear A/C Display Control Head -E265-

   • There are different versions.
2. 1 -

   Left Seat Heating Button

   • Illuminated LED indicates the level selected.
3. 2 -

   Left Seat Ventilation Button

   • Illuminated LED indicates the level selected.
4. 3 -

   Display

5. 4 -

   Rear Fresh Air Blower -V80- Button

   • For setting the blower speed
6. 5 -

   OFF-Button for the Hearing and the Climate Controls

   • Illuminated LED indicates the "off" function is selected.
7. 6 -

   Air Distribution Button

   • The selected "air distribution" function is shown on the display
8. 7 -

   Right Seat Ventilation Button

   • Illuminated LED indicates the level selected.
9. 8 -

   Right Seat Heating Button

   • Illuminated LED indicates the level selected.
10. 9 -

    Front Passenger Side Temperature Preset Regulator

11. 10 -

    Right Auto Button for Automatic A/C System Control

    • Illuminated LED indicates the "Automatic control" function is selected
12. 11 -

    Left Auto Button for Automatic A/C System Control

    • Illuminated LED indicates the "Automatic control" function is selected
13. 12 -

    Driver Side Temperature Preset Regulator
