Distance Regulation Control Module Connector End View (J428, T8a)

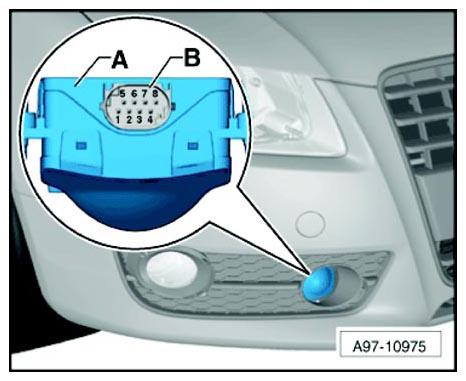

Fig 1: Distance Regulation Control Module Connector End View (J428, T8a)
G10359955Courtesy of AUDI OF AMERICA, LLC
A Distance Regulation Control Module -J428-
B 8-Pin Connector, black -T8a-
