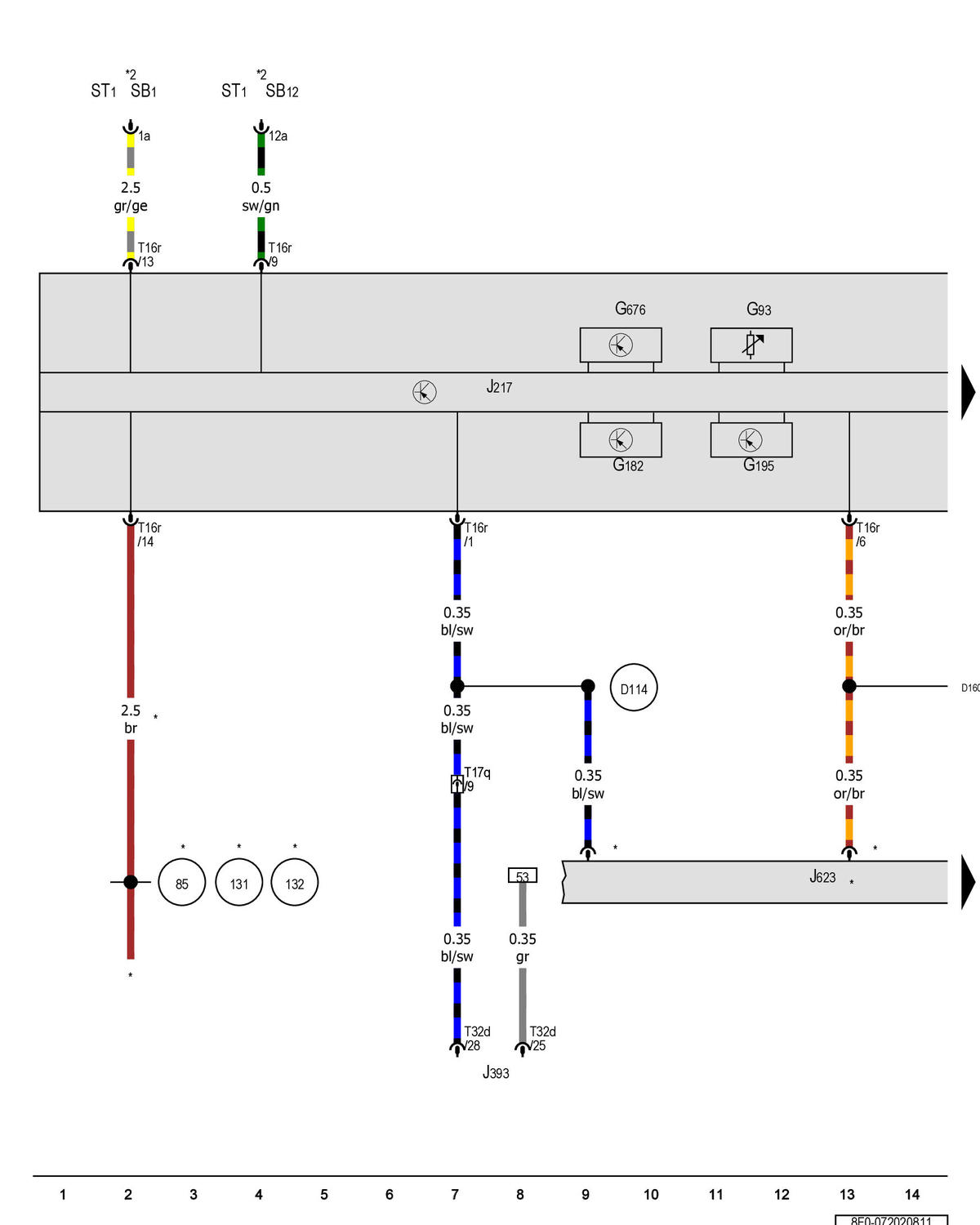

Transmission Fluid Temperature Sensor, Transmission Input Speed Sensor, Transmission Output Speed Sensor, Drive Position Sensor, Transmission Control Module: Notes

GWW8F0-072020811Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
