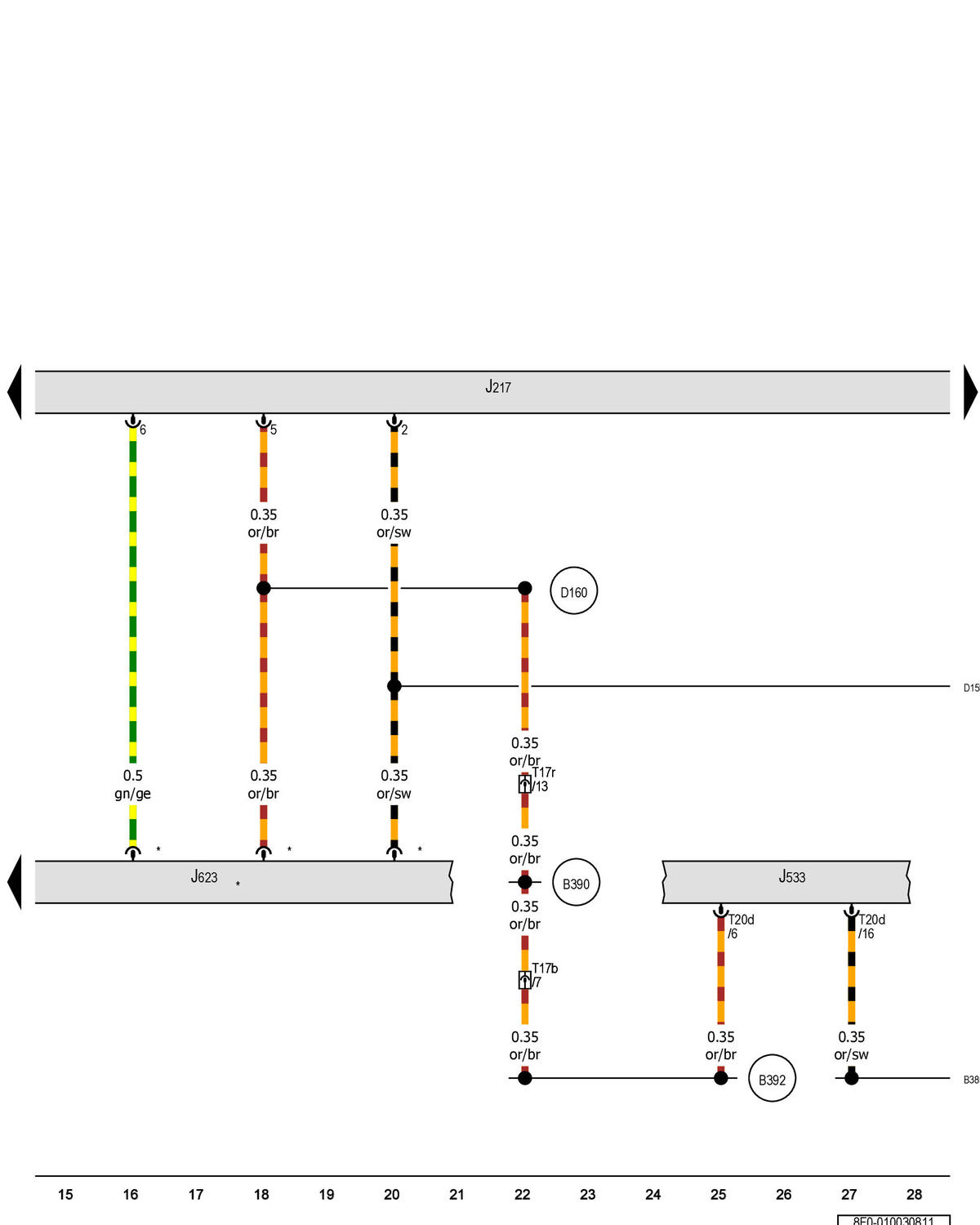

Transmission Control Module, Data Bus On Board Diagnostic Interface, Engine Control Module: Notes

GWW8F0-010030811Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
