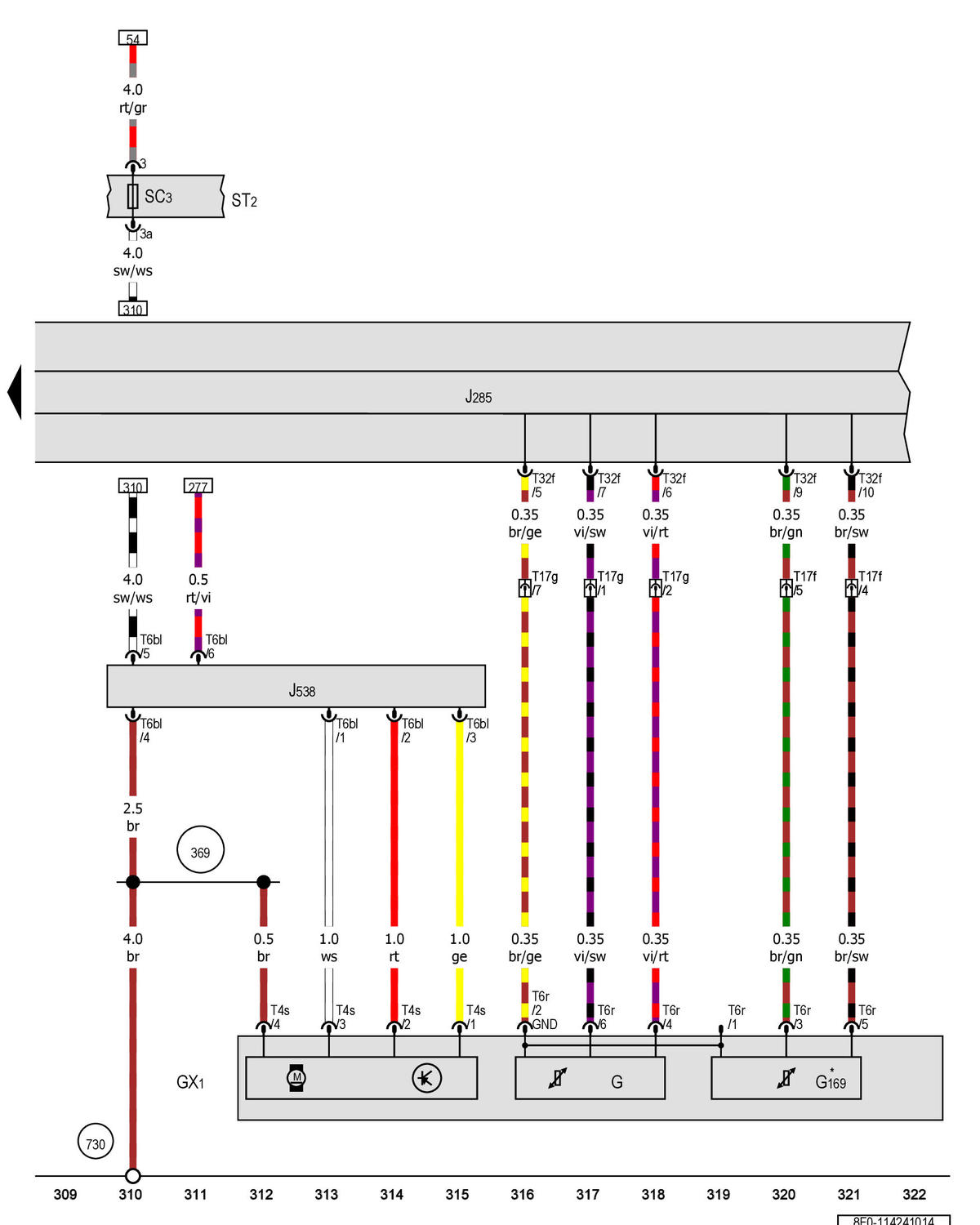

Instrument Cluster Control Module, Fuel Pump Control Module: Notes

GWW8F0-114241014Courtesy of AUDI OF AMERICA, LLC
