Transmission Control Module J217

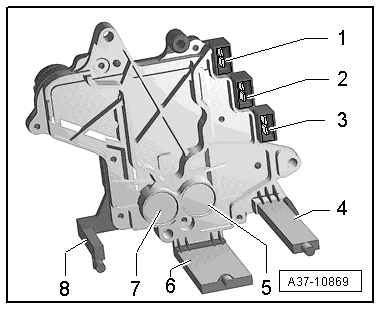

Fig 1: Identifying Transmission Control Module (TCM) -J217-

Courtesy of AUDI OF AMERICA, LLC

Component location: the Transmission Control Module -J217- is at the back of the transmission, secured directly to hydraulic control module.

The Following Components Are Integrated Inside The Transmission Control Module -J217- :

Connector to the hydraulic control unit, on Solenoid Valve 1 -N88-
Connector to the hydraulic control module, on the Automatic Transmission Pressure Regulating Valve 2 -N216-
Connector to the hydraulic control module, on the Automatic Transmission Pressure Regulating Valve 1 -N215-
Transmission Input Speed Sensor -G182- and Transmission Input Speed Sensor 2 -G612-
Automatic Transmission Hydraulic Pressure Sensor 1 -G193-
Multifunction Transmission Range Switch -F125-
Automatic Transmission Hydraulic Pressure Sensor 2 -G194-
Transmission Output Speed Sensor -G195-

NOTE:

On Board Diagnostics (OBD) monitors the Transmission Control Module -J217-.

Removing and installing. Refer to TRANSMISSION CONTROL .
