Comfort System Central Control Module -J393-, REMOVING AND INSTALLING: Removing

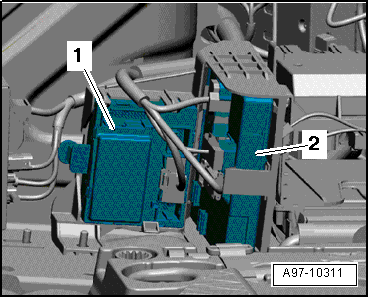

Fig 1: Comfort System Central Control Module 2 -J773- -1- And Comfort System Central Control Module -J393- -2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

In the illustration, Comfort System Central Control Module 2 -J773- -Item 1- and Comfort System Central Control Module -J393- -Item 2- are shown.

-- If Comfort System Central Control Module -J393- -Item 2- is replaced, select respective control module in "Guided Functions" using the Vehicle Diagnostic Tester.

-- Turn off the ignition and remove the key.

5-seater:

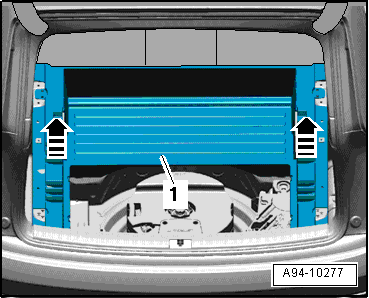

Fig 2: Identifying Luggage Compartment Cargo Floor -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove left and right luggage compartment trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove luggage compartment cargo floor -1- upward -arrows-.

6-/7-Seater:

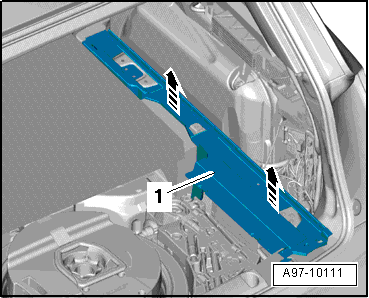

Fig 3: Identifying Luggage Compartment Floor Support

Courtesy of AUDI OF AMERICA, LLC

-- Remove right luggage compartment trim. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove luggage compartment floor support -1- upward -arrows-.

All:

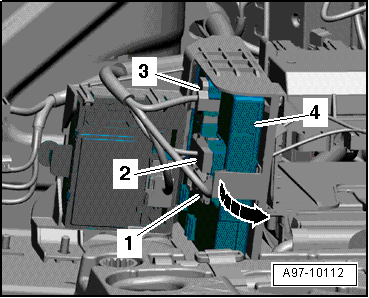

Fig 4: Identifying Clip -Arrow- And Comfort System Central Control Module -J393- -4-

Courtesy of AUDI OF AMERICA, LLC

-- Release clip -arrow- and tip Comfort System Central Control Module -J393- -Item 4- forward out of mount.

-- Release securing clip on connector -Item 1- and remove.

-- Disconnect the connectors -2 and 3-.
