Driver Door Control Module -J386- /Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING

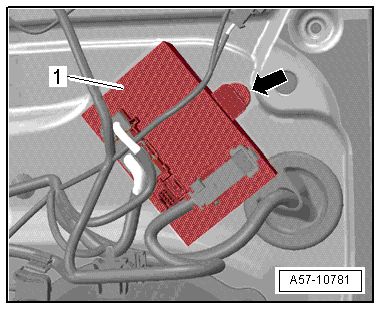

Fig 1: Removing Door Trim Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove the door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector from the door control module -1-.

-- Push the retainer in direction of arrow and unlock the door control module.

-- Install in reverse order of removal. The retainer must click into place.
